Description
Insert the foil – Place the model – Start the program
Everything else will be done by the Erkopress ci motion

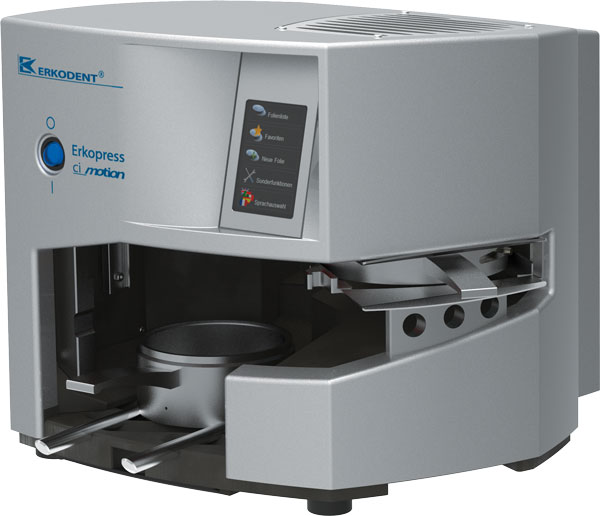

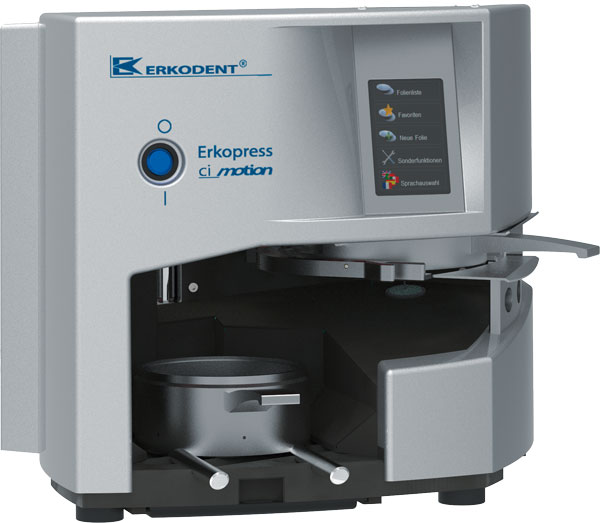

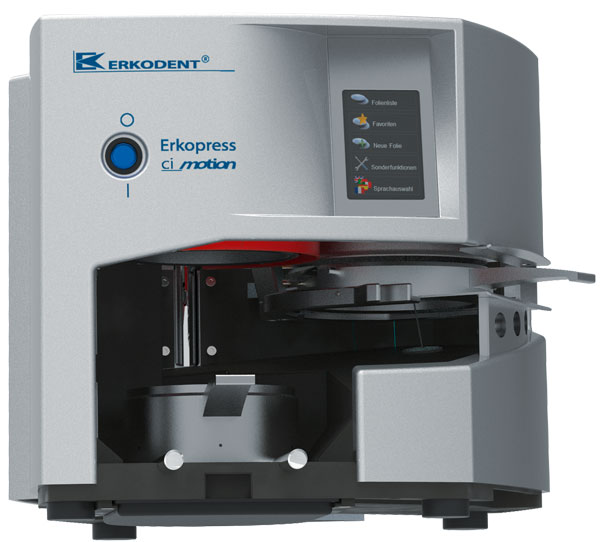

The Erkopress ci motion is the first compressor integrated pressure thermoforming unit with an automated process to control the thermoforming process – the longest working step – making it unnecessary to monitor the heating and cooling cycles and removing the need to manually move the hot foil to the model.
Features
- Completely automated thermoforming process
- Patented sensor exactly determines the actual temperature of the thermoforming material
- The hot foil is formed vertically onto the model for uniform thicknesses
- The adaption of the foil takes place without delay when the cylinder is engaged
- Outstanding workplace safety with automatic switch-off function and pinch protection
- Medium-wave infrared heating without the need for a preheating time
- Easily accessible model during heating period.
- Acoustic and visual signals during operation
- Touchpanel control of functions with animations leading the workflow at each stage
- No external air supply required – plug and play
Accessories: Polimerisation Flask
Warranty: 2 Years
Technical data:
- Foil thickness 0 – 5.5mm
- H 32 cm/W 33 cm/D 52 cm
- Weight app. 22.9 kg
- Operating pressure: 6 bar
- Operating voltage: ~220 – 240 volts, 50 – 60 hertz,
- Wattage: 440 watt
- Noise level <71 db(a)
